Why Epoxy/Polyurethane Grout Injection Methods Are the Superior Solution
Traditional surface patching and sealing often fail because they only treat visible symptoms. Water and structural stress continue beneath the surface, allowing cracks to reopen and leaks to recur. Raider Painting addresses the problem at its source by delivering resin deep into voids, joints, and fissures where deterioration begins.
- Hydrophilic and hydrophobic chemical grout injection relies on specialized materials, typically epoxy or polyurethane resins, to seal and reinforce concrete internally. These resins fill every void and bond directly to the substrate. Once cured, they create a permanent seal that restores structural and waterproofing performance.
- Polyurethane grout injection is often used for active leaks. Hydrophilic polyurethane reacts with moisture to form an expanding, flexible foam that chases water through the crack and seals it as it cures. Hydrophobic polyurethane, by contrast, forms a dense, non-water-absorbing barrier ideal for long-term waterproofing.
- Epoxy grout injection provides structural reinforcement as well as waterproofing. Once cured, epoxy resins develop compressive and tensile strength similar to concrete, making them ideal for stabilizing foundations and restoring load-bearing capacity. This grout injection method is a proven, minimally invasive solution without major operational disruption.
The Raider Injection Process
We begin every project with a thorough site evaluation. Our technicians inspect the crack patterns, water movement, and condition of the concrete to identify the most effective resin and injection method. Once the plan is established, the injection process is carried out with careful precision and close control at every stage.
1
Inspection and Preparation
We start by mapping cracks and joints to understand how water and pressure move through the structure. Injection ports are then drilled at calculated intervals, and packers are installed to guide resin into the concrete. Any open cracks between ports are surface-sealed to contain the resin during the injection process.
2
Resin Injection Under Controlled Pressure
Our technicians inject epoxy or polyurethane resin through the installed ports using precision pumps. Injection pressure is carefully regulated to ensure complete penetration without damaging the substrate. We make sure that the resin fills all cracks, joints, and voids, bonding with the concrete to create a watertight, structurally stable repair.
3
Curing and Verification
Once the injection is complete, the resin is allowed to cure and solidify. We then remove packers, perform cleanup, and conduct post-injection inspections or leak testing to verify results. Each project is documented for quality assurance and long-term reference.
Commercial and Industrial Applications
Raider Painting’s grout injection solutions are used in a wide range of structures where moisture intrusion or foundation instability poses a risk to safety and operations.
Commercial Applications

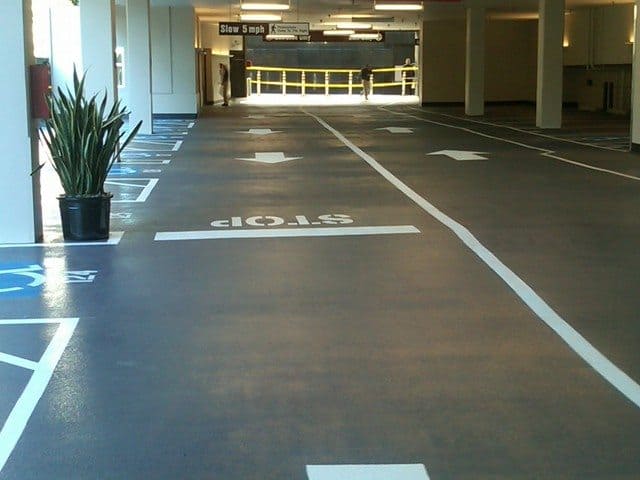

- Parking Garages and Basements: Sealing cracks and joints in below-grade concrete to prevent water ingress and surface deterioration.
- Warehouses and Distribution Centers: Our epoxy injections protect foundations, dock areas, and expansion joints from moisture and chemical exposure.
- Commercial Buildings and Infrastructure: We reinforce concrete walls, retaining structures, and slab foundations subjected to hydrostatic pressure.
Industrial Applications
- Manufacturing and Processing Facilities: Repairing cracks in concrete equipment bases, containment pits, and trenches.
- Power Plants and Utilities: Restoring structural integrity and leak resistance in tanks, tunnels, and turbine foundations.
- Heavy Infrastructure and Industrial Foundations: Using foundation grout injection to stabilize critical load-bearing elements exposed to vibration or chemical attack.
Each project is completed with minimal operational interruption, using methods that comply with OSHA and EPA standards.
Performance Benefits of Injection Systems
Professional injection systems deliver both immediate and long-term advantages.
- Permanent Leak Elimination: Epoxy and polyurethane resins seal cracks at their source, stopping leaks even under high hydrostatic pressure.
- Structural Reinforcement: Epoxy resins restore tensile and compressive strength to cracked concrete, improving load-bearing capacity.
- Waterproofing and Moisture Control: Polyurethane foams expand to fill voids and block water migration through joints and fractures.
- Minimal Downtime: Injection minimizes the need for large-scale excavation or demolition, enabling facilities to remain operational during repairs.
- Extended Service Life: Properly sealed and stabilized structures resist further cracking, corrosion, and water damage for decades.
For facility managers, these advantages translate to reduced maintenance costs, fewer unplanned outages, and a longer lifespan for concrete assets.
Selecting the Right Resin for the Job
Choosing the correct resin depends on the condition of the structure, the type of damage, and the performance requirements.
- Epoxy Resin Injection: This option is best suited for structural cracks and load-bearing applications. Epoxy cures into a rigid material that bonds firmly to concrete, effectively restoring the original strength of the section.
- Polyurethane Resin Injection: Ideal for waterproofing and addressing active leaks. Polyurethane expands upon contact with water to create a flexible, watertight seal that adapts to movement and vibration.
In many cases, a combination of both systems is used, with epoxy for stabilization and polyurethane for waterproofing. Raider Painting’s technicians evaluate every variable, from crack width to moisture content, to design a customized grout injection foundation repair plan that meets performance and budget requirements.
Why Choose Raider Painting for Grout Injection Services
Raider Painting has built its reputation on technical expertise and precision workmanship. Our specialists understand the complexities of epoxy grout injection and chemical grout injection. We utilize high-grade equipment, monitor every injection in real-time, and adhere to strict QA protocols to verify adhesion, fill quality, and leak elimination.
As experienced grout injection contractors, we work within the operational and safety constraints of industrial and commercial sites. Whether repairing a foundation, sealing a process vault, or stabilizing machinery pads, our crews complete each project efficiently, safely, and in full compliance with applicable standards.
With over 40 years of experience in protective coatings and waterproofing, Raider Painting is a trusted partner for durable, performance-driven injection repair systems.
Trust Raider Painting With Your Next Project
Do you need dependable grout injection services for your commercial or industrial facility? Raider Painting offers epoxy and polyurethane injection systems designed to restore strength, seal leaks, and extend the service life of concrete structures.
Call 877-724-3371 or fill out our contact form to schedule a site evaluation and consultation.
